GangPro-iMOTION (X2S)

SKU X2S-GP-IMOTION
Original price $600.00 - Original price $600.00
Original price
$600.00
$600.00 - $600.00
Current price $600.00

Free shipping on orders from $400

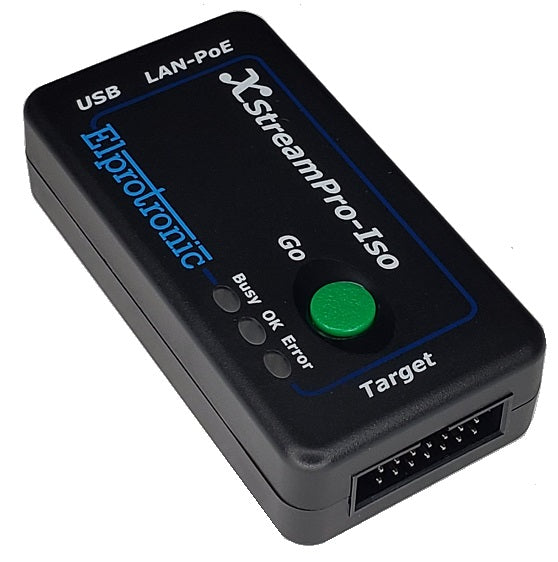

  • Embedded Flash programmer. XStreamPro-Iso hardware adapter runs with GangPro-iMOTION and FlashPro-iMOTION software.
  • Program up to Six (6) targets simultaneously.
  • Supports SWD, and UART communication.
  • SWD: Programmable communication clock up to 20 MHz, effective throughput up to 1 MBytes/s.
  • UART: Selectable speed from Fast 2.1 Mbps, Medium 500 kbps, to Slow 115 kbps.
  • Standalone Mode in FlashPro mode only (Auto Program with GO button from internal flash for single target programming)
  • Ethernet and USB connectivity.
  • Power supply from adapter available, up to 200 mA.
  • Deep-Sleep mode current measurement from 5 nA to 200 mA.
  • Customizable Vcc from 1.2 to 4.0V.
  • Galvanic Isolation between computer and target (XStreamPro-Iso up to 1.0kV)
  • CMSIS-DAP 2.0 ARM Debugger included (IAR EWARM, Keil uVision, etc. debugging support). Debugger features.
  • Benchmarks
Programs targets from Infineon:
  • Infineon iMOTION ARM, and MCE support.
Software Package:
  • Easy to use GUI runs on Windows(TM) XP, 7, 8, 10, and 11.
  • DLL and Command-Line support (Windows).
  • C++, C#, Python code examples provided.
  • Download installer for: Windows
  • Debugging User Guide
Package contains:
  • iMOTION programmer (Elprotronic/GSAS),
  • USB cable,
  • 14-to-14-pin ribbon cable,
  • One Year Warranty,
  • No code size limitations,
  • One Year free software updates,
  • Default production quota of 10,000 targets can be programmed with standard purchase. This quota is decremented on MCE-core firmware programming cycle. Additional units can be programmed with license quota renewal. Product will stop programming MCE firmware when quota is exhausted and not renewed. Contact sales@elprotronic.com for bulk or long term production quota offers.
  • *GangSplitter-ARM not included*
