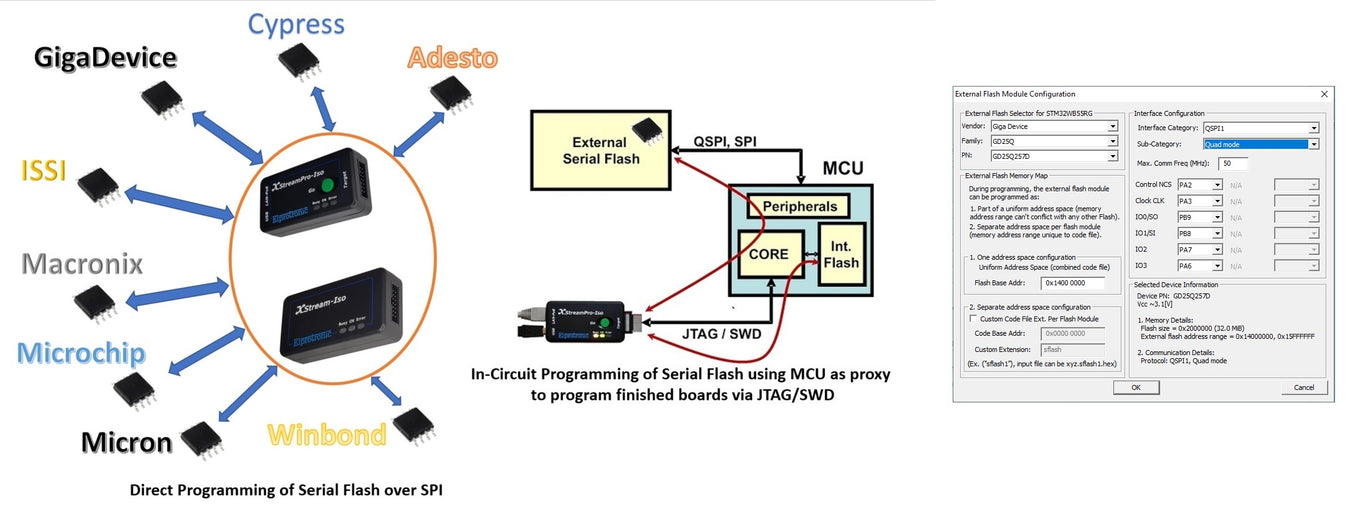

In-Circuit Programming of GigaDevice Serial Flash over SPI or JTAG/SWD

In-Circuit Programming of GigaDevice Serial Flash over SPI or JTAG/SWD

1. FlashPro-M and GangPro-M (XS, X2S):

  • External serial flash memory must be connected to programming adapter using a serial peripheral interface connection (SPI).
  • Up to 1 MBytes/s programming (up to 20MHz, depends on target memory).

2. FlashPro-ARM and GangPro-ARM (X2S):

  • Same as above, can program serial flash directly over SPI, and also:
  • Can program both target MCU internal flash and any connected external serial flash using JTAG/SWD interface only.
  • To program using MCU, memory must be connected to target MCU via a working serial peripheral interface (OCTOSPI, Dual-QSPI, QSPI, SPI, etc.).
  • I/O port configuration utility provided in GUI. Allows interactive configuration of MCU peripheral interface pins to memory.

    Check out our Tutorial Videos on YouTube!


    • Shared library and Command-Line support (Debian Linux).
    • DLL and Command-Line support (Windows).
    • C++ and C# code examples provided.
    • FCC and CE certified.
    • Software Features and Details Page
    Programs External Flash when directly connected to programmer. Purchase product:
    XStreamPro-Iso adapter:
    XStreamPro-Iso adapter:
    Programs External Flash directly AND when using ARM MCUs as proxy

    Gang Programming up to six(6) targets in parallel    :
    XStreamPro-Iso adapter:
    - GangPro-ARM-1V(X2S), one vendor support, $1109.00 USD
    - GangPro-ARM(X2S), multiple vendor support, $1219.00 USD
    GigaDevice memory supported list:
    GD25WD:
    GD25WD05C, GD25WD10C, GD25WD20C, GD25WD40C, GD25WD80C
    GD25WQ:
    GD25WQ80E, GD25WQ16E, GD25WQ32E, GD25WQ64E, GD25WQ128E
    GD25Q:
    GD25Q20C, GD25Q40C, GD25Q80C, GD25Q80E, GD25Q16C, GD25Q16E, GD25Q32C, GD25Q32E, GD25Q64C, GD25Q64E, GD25Q127C, GD25Q128E, GD25Q256D, GD25Q257D
    GD25B:
    GD25B16C, GD25B16E, GD25B32C, GD25B32E, GD25B64C, GD25B64E, GD25B127D, GD25B128E, GD25B256D, GD25B257D
    GD25D:
    GD25D05C, GD25D10C, GD25D20C, GD25D40C, GD25D80C
    GD25LD:
    GD25LD05C, GD25LD10C, GD25LD20C, GD25LD40C, GD25LD80C
    MCU supported list:
    Full vendor and family support is actively being added to encompass our current list of MCU families as show in: XStreamPro-Iso (X2S)
