FlashPro-430 (X2S)

SKU X2S-FP-430
Original price $659.00 - Original price $659.00
Original price
$659.00
$659.00 - $659.00
Current price $659.00

Free shipping on orders from $400

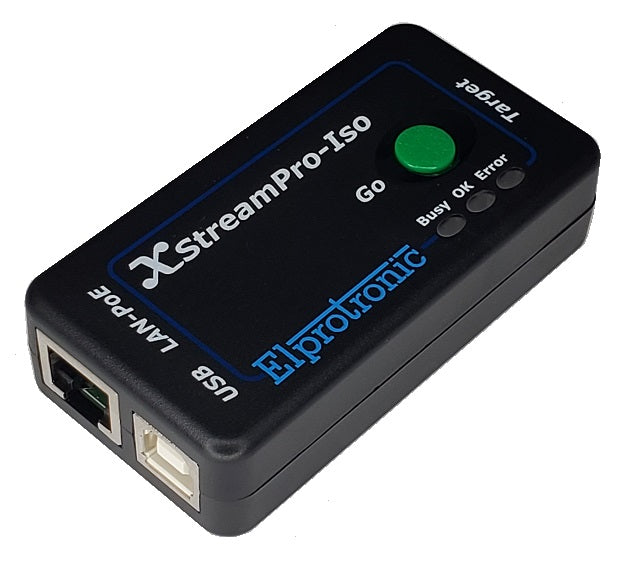

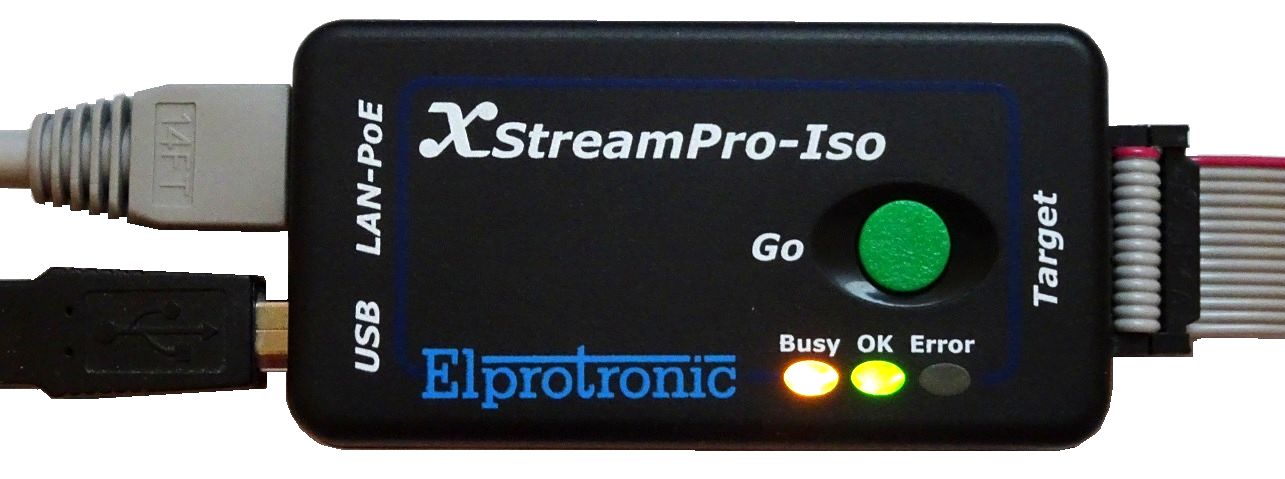

  • Embedded Flash programmer. XStreamPro-Iso hardware adapter runs with FlashPro-430 software.
  • Programs Texas Instruments MSP430.
  • Supports JTAG, SBW, and BSL communication.
  • Programmable communication clock up to 16 MHz, effective throughput up to 1 MBytes/s.
  • Standalone Mode (Auto Program with GO button from internal flash).
  • Ethernet and USB connectivity.
  • Power supply from adapter available, up to 200 mA.
  • Deep-Sleep mode current measurement from 5 nA to 200 mA.
  • Customizable Vcc from 1.2 to 4.0V.
  • Built-in galvanic isolation between PC and targets.
  • IAR EW430 debugging support.
  • Benchmarks
Software Package:
  • Easy to use GUI runs on Windows(TM) XP, 7, 8, 10.
  • Shared library and Command-Line support (Debian Linux).
  • DLL and Command-Line support (Windows).
  • C++, C#, Python code examples provided.
  • Download installer for: Windows, Debian (x86-64), and Debian (ARM)
Package contains:
  • XStreamPro-Iso 1.2 programming adapter,
  • USB cable,
  • 14-pin MSP430-JTAG/SBW/BSL ribbon cable,
  • FPA to MSP430-BSL 14-pin to 10-pin adapter and ribbon cable,
  • One Year Warranty,
  • Unlimited time software usage license, no limit on number of programmed devices,
  • No code size limitations,
  • One Year free software updates,
  • Software Update License Renewal is optional (only needed for updates to run newer software version after one year).  Already used software version will run indefinitely, with no need for license renewal.
